Particulate Matter Instruments

All
Source Apportionment Sampler
PMX Samplers and Analyzers

4-Channel Sampler

Speciation Sampler MicroPNS SPESA

For sampling atmospheric species in gaseous and particular form.
The microcomputer-controlled air sampler, MicroPNS Type MicroPNS SPESA, is a system for the automatic parallel or sequential collection of PM10 or PM2.5 particles on filters and gaseous components on so called honeycomb filters, made out of glass.
The modular system is furnished with two internal pumps for volume flow rates of up to 3m3/h.
Sequentially or parallel collection on membranes with diameter 47mm without surveillance.

High Spatial Resolution Sampler (HSRS)

Current State of Knowledge

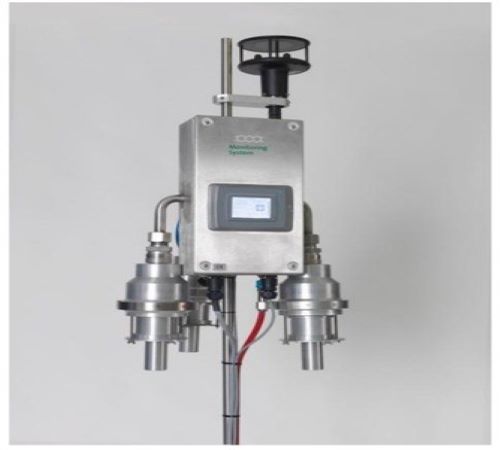

Directional/ Source Apportionment Sampler

Speciation Sampler MicroPNS SPESA

Many residents of dust-intensive plants have problems with coarse dust. We specialize in the sampling of coarse dust. Whether wind direction-dependent measurement with the Window select® or “point of source” measurement, we support the planning of the measurement. Whether coarse dust measurement or aerosol measurement, we have the right system.

Read More

Hydra

Main Feature

1. Dual channel sampler of particulate matter.
2. The instrument can work with any sampling inlet (PM10, PM2.5, PM1) within the operating flow rate range 0.8 ÷ 2.5 m³/h, on two distinct independent channels.
3. Temperature control of the air flow through one or both the sampling lines, in order to minimize volatile material losses (optional feature).

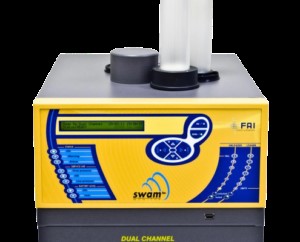

Swam 5A Dual Channel Monitor

Characteristics

1. Total keeping of the general technical national and international regulations regarding the instruments for air quality control for suspended particulate matter.
2. Very high-quality standard of representative suspended PMx sampling phase (measurement of all physical parameters characterizing the sampling phase, operating flow rate control at sampling inlet level, automatic control of the flow rate measurement system calibration, automatic control of the presence and entity of pneumatic circuit losses, etc.).

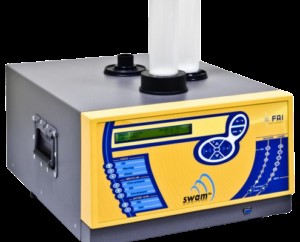

Swam 5A

Main Features

1. Swam 5A monitor can work with any sampling inlet (for example: PM10, PM2.5, PM1) within the operating flow rate range 0.8 ÷ 2.5 m³/h.
2. Sampling at ambient temperature with measurement of the external temperature and of the temperature near the filter.
3. Sampling on ø 47mm filter membranes, exploitable for further analysis

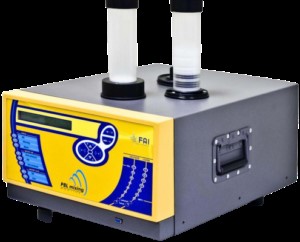

PBL Mixing Monitor

Main Features

1. Operating flow rate 2.3 m³/h in PBL monitor mode.
2. Possibility of sampling with operating flow rate value within the range 0.8 ÷ 2.5 m³/h in standard sampler mode.
3. Sampling on ø 47mm filter membranes.
4. Quality controls based on completely automatic management of sampling, ß measurement and servomechanisms.

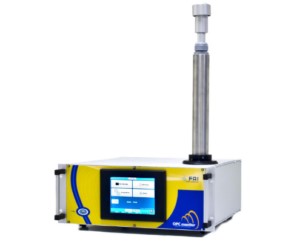

OPC Multichannel Monitor

Main features

Operating range: 1.0 l/min
Flow Control Accuracy: ±2%./li>
Particle size class detected: > 0.28 μm (optical diameter).
Read cycle: continuous
Dimensional resolution: 0.05 μm

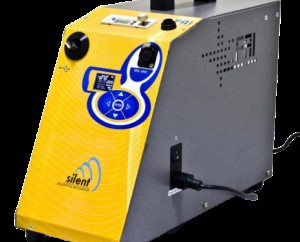

Silent Sequential Air Sampler

Main Characteristics

Silent Sequential Air Sampler is a sequential instrument specifically developed for particulate matter collection in indoor environment.
Silent meets the requirements of pm sampling aimed to the chemical characterization of the collected dust in domestic environments:

Very low noise (35db), allowing pm collection also in bedrooms, classrooms, hospitals, museums, libraries, etc.

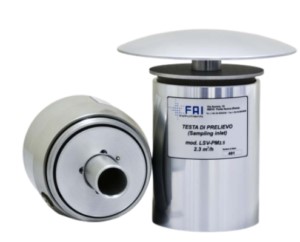

Rotary Impactor Head

The new Rotary Impactor Head guarantees a very high-quality standard in the PMx sampling with multi-jet inertial impactor. It allows:

A definite improvement of the temporal stability of the granulometric cut size efficiency
A remarkable increase of the usable deposition surface (about 6 times larger in case of sampling inlets with 8 nozzles in compliance with the European Standard).

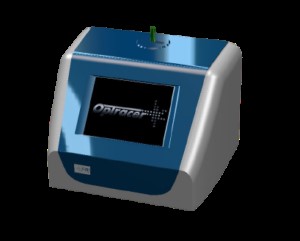

Optracer

Main Features

Operating range 1.0 l/min.
±2% accuracy flow control.
Particle size class detected > 0.28 μm (optical diameter).
Reading the loop continuously.
Real-time estimation of suspended particulate mass concentration PMx.

Dust Collectors

Low Volume Sampler LVS
Device Description:

Microcomputer controlled gas collector for automatic dust sampling on membrane filters with diameters of 140 mm or 150 mm according to EN 12341.
The gas flow is determined physically correctly with pressure and temperature compensation and flows into the control electronics as an adjustable variable. The control is carried out via the MicroPNS control module.

Current State of Knowledge

Spatial distribution of pollutants over time are available only through modelling studies and the validation of models is carried out by means punctual ambient data monitoring resulting in objective difficulty of representativeness at the spatial computational domain on long-term assessments of the sources (for example those industrial). Applying conventional monitoring, long term studies could be characterized by relevant costs of devices and chemical analyses. The study of the spatial distribution of atmospheric PM and of its components is essential for a reliable identification of emission sources, the evaluation of particle dispersion over the territory and the assessment of personal exposure.
FAI Instruments S.R.L has been developed a new very-low volume sampler (HSRS) with the purpose of allowing spatially resolved determination of atmospheric particulate matter (PM) and of its chemical components.
The low-cost, automatic and self-powered device assures long-term (1-2 months) collection of PM on membrane filters, suitable for subsequent chemical analyses.
The Innovative techniques for outdoor/indoor active sampling (Patented), able to ensure representatively of the samples collected using an adequate number of devices for the proposed objectives to obtain:

Isoconcentration maps of the area under investigation;
The system allows to keep reliable cost and thanks to the energy free and its small size could be used for
Characterization of pollutants and identification of sources (risk assessment/human health);
More representative evaluation of exposure concentration (Epidemiologic study).

Validation Of Dispersion Models

With the aim to optimize the analytical costs for micropollutant characterization, also the time sampling should be changed “stretching time” for each sample. Using this modality, the number of samples during long term monitoring, could be reduced and the determination of micropollutants should become easier.
The performances of HSRS sampler have been evaluated by national council of research of Rome during 1 year of field test, compared with reference instruments.
The source apportionment studies and monitoring evaluation, through air quality spatially resolved analyses, has been performed by department of chemistry, Sapienza University of Rome.
In this study particular attention was also paid to the representativeness of sites with respect to each local emission source of PM, as follows:

Power plant for waste treatment.
Domestic biomass heating.
Railway
Very extensive steel plant.
Vehicular traffic

Features

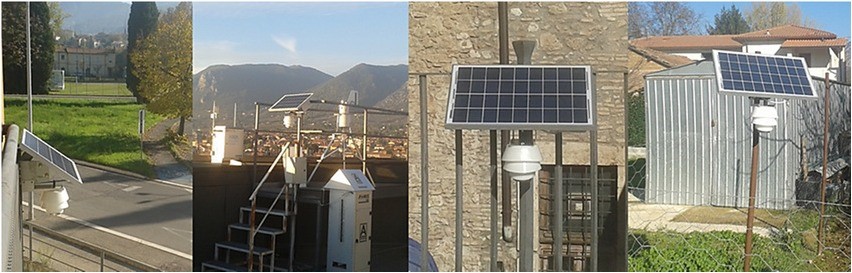

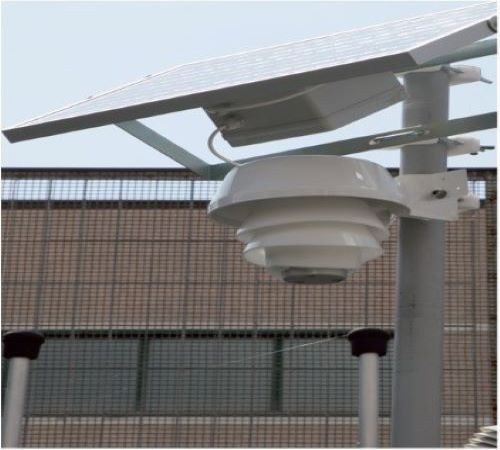

1. The micro sampler works autonomously for long periods of time in areas unattended.
2. By setting the operating capacity to 0.5 l/min will have a consumption of only 0.2w for the intake system.
3. The power is supplied from a power supply system constituted by a rechargeable battery and a small solar panel.
4. A small shield protects the sampler from the sun and rain.
5. The sampler is small and light enough to be easily installed on existing structures:
6. Light poles, railings, balconies, TV antenna in terrace in houses.
7. The sampler is programmable by the use of reading.

Station connected with dedicated software.
Another potential application is for the indoor sampling (domestic, school, museum, hygiene market) and for these applications it is extremely important:

Characteristic of absolute silence
Small and light

The results of the sampling should give fruitful information about the real exposure to a contaminant taking into account not only the outdoor air but also the indoor air quality where a person spent more lifetime.

Special Features

Wind direction-dependent distinction between source and background.
Cartridge for calm wind.
Calm wind from 0 to 3 m/s freely adjustable.
6 cartridges allow the sampling of many pollutants from the air.
Collection of coarse dust included
20 years of research experience.

Uses & Applications

Monitoring of industrial zones.
Gas and oil fields.
Source apportionment studies.
Monitoring of mercury.
Persistent organic pollutant monitoring (POP).

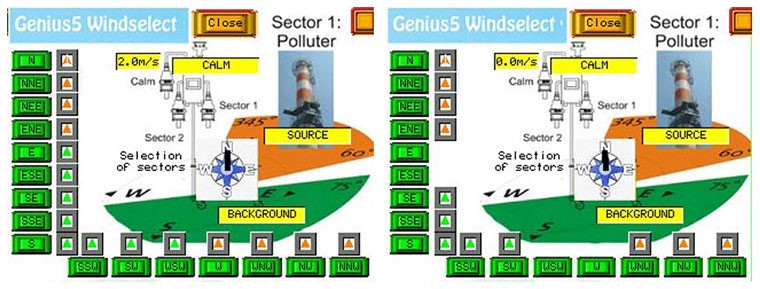

Data Representation and Configuration of The Windselect

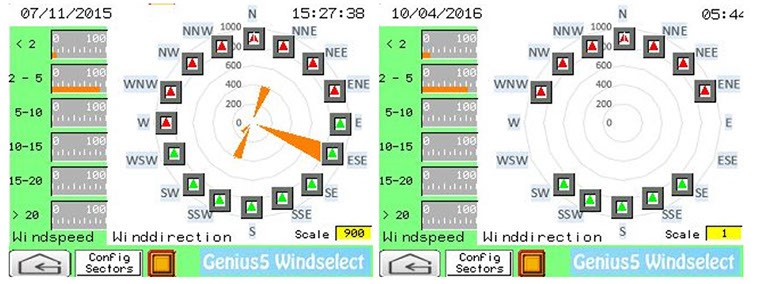

The wind directions are divided into 16 sectors, each sector is summed up in its frequency during the measurement. Likewise, the measured wind speeds are divided into 16 classes. This quickly gives an overview of the measurement results.

Picture above: Display with data and wind direction sectors at Windselect
In the configuration, the cartridges are assigned sectors for background and source. For the 3rd cartridge a threshold level is used. Z.B. below 2 m/s is sampled on the cartridge “calm”. Above this speed, according to the configuration, the cartridges “sector 1” or “sector 2” are divided.

Calibrated impactors for accurate cutpoints

The reflectors of the Windselect system were calibrated against reference materials in the United Kingdom. The cutpoints were set in relation to the number of holes and the average diameter of the holes. This resulted in a modular system that can be adapted to all tasks.
The PM10 impactor advantageously also collects the fraction larger than 10 microns on a filter paper. PM1 and PM2.5 impactors can be easily adapted to the flow rate, the cutpoints correspond to a flow of 4.2 m3/h with 400 holes, by reducing the number of holes, the dust can also be collected at 2.3 m3/h or 1 m3/h.
The pm10 collector for separate collection of the fraction larger than 10 μm is now available as a compact unit with d=47 mm for the fraction < 10 μm, pump and temperature-compensated gas meter. Practical for the rapid review of residents’ complaints.

Reports of the windselect results

PCDD/F Wind-Selective Sampling in Taranto Area
Active Sampling and Analysis of Dioxins and Polyaromatic Hydrocarbons Bound to Fine
Particles in the Vicinity of a Municipal Solid Waste Incinerator

Characteristics

Total keeping of the general technical national and international regulations regarding the instruments for air quality control for suspended particulate matter.
Very high-quality standard of representative suspended PMx sampling phase (measurement of all physical parameters characterizing the sampling phase, operating flow rate control at sampling inlet level, automatic control of the flow rate measurement system calibration, automatic control of the presence and entity of pneumatic circuit losses, etc.).
Very high-quality standard of the PMx samples mass determination phase, thanks to an innovative implementation of the ß technique, international patent pending, that uses a unique integral source+detector system and ancillary measures on “spy filters” (estimation and removal of the possible biases associated with the ß measurement).
Long working autonomy without the operator’s intervention, thanks to the automatic management of a lot of filter membranes (till 72).
Complete instrumental management also by remote connection via modem (data acquisition, instrumental electronics and mechanics diagnostic and teleassistance). Possibility of automatic SMS (concentration data and main diagnostic information).
Very high-quality standard of the servomechanisms engineering for the automatic management of the sampling cycles (real-time acquisition of the parameters characterizing every single mechanical movement and relative quality controls).

SWAM 5a Dual Channel Monitor inherits for the sampling the extraordinary versatility of the HYDRA Dual Sampler and it revolutionizes the implementation of the Mass Measurement Technique, achieving precision levels such as to putting itself forward as an ideal candidate for the Automatic Reference Methods for PMx Measurement.

Applications

Monitor mode for the simultaneous sampling on two independent lines with associated mass measurement and possibility of drawing samples with different granulometric cut sizes (for example PM10 and PM2.5 or PM2.5 and PM1) high quality standard
Reference mode using one of the two sampling lines as auxiliary line to achieve particularly high metrological goals.
Hourly mode (hourly) measurement of mass hourly concentration through a specific application of the beta technology. Measurement of the beta activity associated with the Radon decay products, for the evaluation of the degree of mixing of the PBL.

For more info: Follow the Link

Main Features

Operating range: 1.0 l/min.
Flow Control Accuracy: ±2%.
Particle size class detected: > 0.28 μm (optical diameter).
Read cycle: continuous.
Dimensional resolution: 0.05 μm.

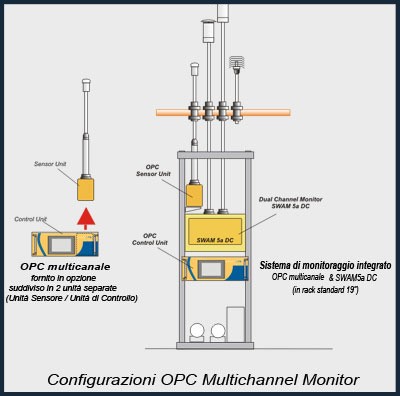

Configurations

The tool is available in two different configurations that allow you to meet different installation needs.
System for the real-time characterization of the particle size distribution of the airborne particle material in the particle size range affected by the “fine” and “coarse” mass accumulation modes.
The instrument provides both concentration in number of particles in the 8 particle size ranges into which the measuring range is divided, and an estimate of the mass concentration data of the three fractions pm10, pm2.5 and pm1.

Applications

Characterization of time trends in particle size distribution for fractions > 0.28 μm to support and supplement information on the state of air quality.
Determination of correlation factors with emission sources and their typology
Analysis of particular environmental situations, allowing the identification of targeted corrective activities.

For more info: Follow the Link

Integrated System

The instrument for the PMx measurement (i.e., SWAM 5A instruments) gives the 24 h mass concentration average value with a high precision and reliability level, while the optical particle counter gives the suspended particulate matter daily trend, putting in evidence its trend in real time (number and granulometric size).
Such a datum, suitably integrated with the PMx information, can give fundamental indications to determine the correlation factors with the emission sources and their type.
This information makes it possible to analyse special environmental conditions allowing, if needed, to identify eventual corrective activities.
This technological approach is aimed at using the OPC data for their correct functional value, that is as an integration of the PMx concentration data supplied by the monitors.

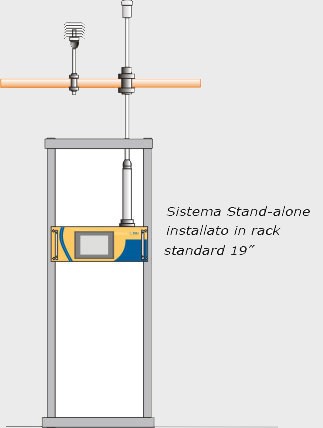

Stand Alone System

The accurate measurement of this parameter (optical dimension of the particle under examination), being not directly detectable, but based on the transformation of light pulses into electric signals, is connected with the quality of the optical and electronic detection system.
That’s why multichannel OPC system (Integrated Monitoring System) is equipped with a special optical configuration called “wide angle”, based on the principle of the ellipse double focusing, allowing to achieve a very high accuracy level in particle detection.
The OPC system measures the number particles in air by the “Light Scattering” physical principle. This principle is based on the measurement of the light “scattered” by a particle interacting with a light source and proportional to the equivalent diameter of the particle itself.

Low Volume Sampler LVS1

Device Description:

Sampling heads PM2,5, PM10 and TSP available.
Flow settings up to 2.3 m³/h.
Sampling is controlled real time.
Collection duration or collection volume adjustable.
Suitable for unattended, fully automatic operation.
Available as a single module or with weatherproof housing.
Power supply 220 Vac/ 50 Hz

Low Volume Sampler LVS16

System Description:

Microcomputer controlled gas collector for automatic dust sampling on membrane filters with diameters of 47 mm or 50 mm according to EN 12341. Automatic switching for sequential loading of up to 16 filters.
The gas flow is determined physically correctly with pressure and temperature compensation and flows into the control electronics as an adjustable variable. The control is carried out via the MicroPNS control module.

Sampling heads PM2.5, PM10 and TSP available.
Flow settings up to 2.3 m³/h.
Sampling and switching of filters controlled real time.
Collection duration or collection volume adjustable.
Suitable for unattended, fully automatic operation.
Available as a single module or with weatherproof housing.
Power supply 220 Vac/ 50 Hz

Sampler MicroPNS Duo Dichotomous

Device Description:

The microcomputer-controlled sampler, MicroPNS Type MicroPNS Dichoto is a system for the automatic parallel collection of PM10 -2.5 (Coarse) and PM2.5 (Fine) particles.
Gas flow is regulated via mass flow controller, which are controlled by the built-in microcomputer and electronics of MicroPNS.

Flow range variable from 1m3/h up to 2.3 m3/h.
Sampling is independent, microcomputer controlled sequential sampling on particulate filters.
Automatic Sequencer unattended automatic operation: user enters time and date for beginning and stop, volume, and flow rate for each sampling event; If flow rate falls outside these limits, the sampling will stop and indicate that these sampling was not valid.
Power supply 230 Vac/ 50 Hz.
Available as 19” rack mounted or outdoor housing with thermal insulation and painted steel housing.

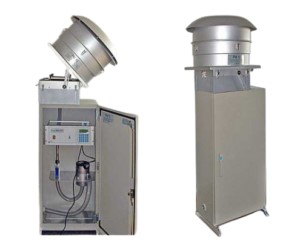

High Volume Sampler HVS1

Device Description:

Sampling heads PM2.5, PM10 and TSP available.
Flow settings up to 100 m³/h.
Sampling controlled real time.
Collection duration or collection volume adjustable.
Suitable for unattended, fully automatic operation.
Available as a single module or with weatherproof housing.
Power supply 220 Vac/ 50 Hz

High Volume Sampler HVS16

Device Description:

Microcomputer controlled gas collector for automatic dust sampling on membrane filters with diameters of 140 mm or 150 mm according to EN 12341. Automatic switching for sequential loading of up to 16 filters.
The gas flow is determined physically correctly with pressure and temperature compensation and flows into the control electronics as an adjustable variable. The control is carried out via the MicroPNS control module.

Sampling heads PM2,5, PM10 and TSP available.
Flow settings up to 100 m³/h.
Sampling and switching of filters controlled real time.
Collection duration or collection volume adjustable.
Suitable for unattended, fully automatic operation.
Available as a single module or with weatherproof housing.
Power supply 220 Vac/ 50 Hz
