Other Air Quality Instruments
Compressed Air Treatment and Zero Gas Plants
We supplies compressed air treatment systems for analytical technology with filter systems for the removal of interfering components and dental compressors that are ideally suited for dental practices and dental laboratories or other industrial sectors.
The system and system generated dry and purified compressed air and can be assembled according to the individual needs of the user.
1. Mobile Complete Systems

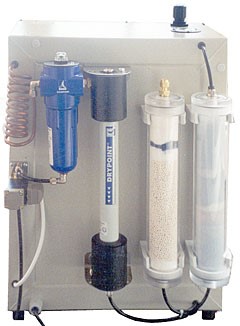

NGM 5
Device Descrition
Compact zero gas system for operating and zero gas in gas analysis. Compressor (Thomas pump type 607cd22) works oil-free. Immediately ready for operation, low-maintenance operation. Small plant for zero gas generation, especially for the laboratory or as a mobile system.
Use:
Service, Small laboratories, For mobile measurement, As a replacement device in case of maintenance or failure of the central zero gas system.
Interference components are removed via 2 filter cartridges. Filling of the filter cartridges according to the application.
- Max. Pressure- 3 bar.
- Gas flow- approx. 9 l/min at 3 bar.
- Drying- water separator / molecular sieve.
- Power supply- 220 v 50 Hz.

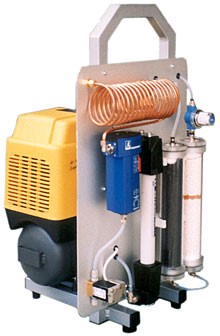

Zero Gas Plant NGA 100-6S
Device Descrition
Compact zero gas system with permeation dryer and 6L compressed gas tank for operating and zero gas in gas analysis. Compressor works oil-free. Immediately ready for operation, low-maintenance operation. Small plant for zero gas generation, especially for the laboratory or as a mobile system, with permeation dryer and gas tank.
Use
Service, Small laboratories, For mobile measurement, As a replacement device in case of maintenance or failure of the central zero gas system. Interference components are removed via 2 filter cartridges. Filling of the filter cartridges according to the application.
- Housing dimensions- 380 x 410 x 630 (l x w x h).
- Weight- approx. 24 kg.
- Max. Pressure- 8 bar.
- Gas flow- 34 l/min at 3 bar.
- Pressure tank- 6 litres.
- Drying- water separator / permeation dryer dew point type. -5°c.
- Power supply- 220 v 50 Hz / 4A.
- Noise level- 61 dB(A) / 1m.

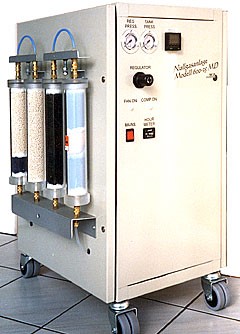

Zero Gas System NGA 600-25 MD
Device Descrition
Compact zero gas system with permeation dryer and 25L pressurized gas tank. For operating and zero gas in gas analysis. Compressor works oil-free. The compressor is mounted in a soundproof housing.
Application
Laboratory, central zero gas plant, due to the compact design, the zero-gas system can be easily used in different places interference components are removed via 4 filter cartridges. Filling of the filter cartridges according to the application.
- Housing dimensions- 570x450x70x785.
- Weight- approx. 38 kg.
- Max. Pressure- 3 bar.
- Gas flow- 60l/min.
- Pressure tank- 25 litres.
- Drying- water separator / adsorption dryer.
- Power supply- 220 v 50 Hz.
- Noise level- 46 dB(A) / 1m.
NGA 600-4S
Device Descrition
Compact zero gas system with permeation dryer and 4L compressed gas tank. For operating and zero gas in gas analysis. Compressor works oil-free.
Application
Laboratory, central zero gas plant, due to the compact design, the zero-gas system can be easily used in different places. Interference components are removed via 2 filter cartridges. Filling of the filter cartridges according to the application.
- Compact zero gas system, can be used conditionally mobile (e.g., within a building).
- Unlike NGA 600-25 md housing not soundproof and smaller compressed air tank.
- Weight- approx. 38 kg.
- Max. Pressure- 3 bar.
- Gas flow- 65L/min.
- Pressure tank- 4 litres.
- Drying- water separator / permeation dryer dew point type. -20°C.
- Power supply- 220 v 50 Hz.
2. Complete Systems For Installation In 19" Rack
Zero Gas Plant NGA 19S
Device Descrition
Compact zero gas system in 19-inch housing with integrated cold catalytic gas cleaner, permeation dryer and 6 l compressed gas tank. For operating and zero gas in gas analysis. Compressor works oil-free.
Application
Laboratory, Measuring Stations, Measuring Vehicles.
Interference components are removed via 2 filter cartridges. Filling of the filter cartridges according to the application.
- Housing dimensions- 19 inches.
- Weight- approx. 14 kg.
- Max. Pressure- 3 bar.
- Gas flow- 34L/min at 3 bar.
- Pressure tank- 6 litres.
- Drying- water separator / permeation dryer.
- Power supply- 220 v 50 Hz/4A.
- Noise level- 61 dB(A) / 1m.
3. Modular Systems for Stationary Mounting
Custom-Specific Systems for Compressed Air Treatment
Device Descrition
The tasks of a laboratory are just as diverse and different as the requirements for a zero and operating gas supply.
Especially with the central supply of zero and operating gas, there are many special requirements that can only be insufficiently secured with a standard system. MCZ has therefore specialized not only in the production of standard devices but also in setting up the gas supply systems in a customer-specific manner. The many years of experience and a flexible modular design of the null gas systems enable MCZ to provide the best possible solution for your requirements even in a special case.
Laboratory, Measuring Stations, Measuring Vehicles.
Interference components are removed via 2 filter cartridges. Filling of the filter cartridges according to the application.
- According to the problem, MCZ offers ready-to-use system solutions with all components for compressed air generation and treatment, on request including on-site assembly.

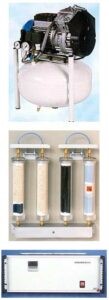

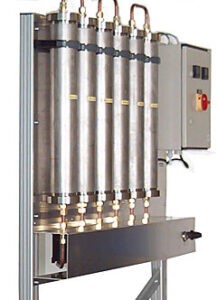

Zero Gas System NGA-M1000
Device Descrition
Standard system for zero gas generation consisting of compressed air module with tank and adsorption dryer for installation on the floor, montage plate with four filter cartridges and exhaust filter for separating any particles from the filter materials as well as (optionally) the catalytic gas cleaner k15 in 19-inch housing.
- Compressed air system with compressor and filter.
- Oil-free dental compressor.
- For operating gas, laboratory or dental gas or zero gas system for gas analysis.
- Modular system for stationary assembly.
- Optional with catalytic gas cleaner and dryer.
4. Supplementary Materials
Catalytic Gas Purifier K15
Device Descrition
The catalytic gas cleaner also removes the hydrocarbons and CO from the prepared zero gas. The HC and CO free gas is suitable as an operating and carrier gas for gas chromatographs and for the production of calibration gas for CO / HC analysers.
Span Gas, Zero Gas Dampening
Device Descrition
In order to obtain reproducible analysis values, it is often necessary in gas analysis to adjust the zero and test gas, or optionally the carrier gas, to a defined humidity.
MCZ provides differently dimensioned systems with which the real. Gas moisture can be adjusted.
The structure and the procedure depend on the application.
Gasassembly/ Calibration Systems Gas Analysis
1. Simple Calibration Systems Without Internal Program Control

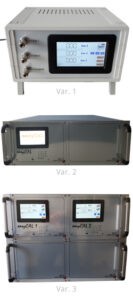

Gas Mixing and Calibration System EasyCal
- Gas mixing and calibration system.
- With intuitive touch display.
- No previous knowledge or external pc software necessary.
Calibration System MK5 BNT
- Calibration system for mobile use as a transfer standard between different measuring stations.
- Operation via mains (220 vac), standby via internal battery or automotive electrical system (12 vdc).
- Manual adjustment of the gas flow code via 10-speed potentiometers.
- Gas flow control via mass flow controller.
Calibration System MK5 / MK10
- Manual adjustment of the gas flow code via 10-speed potentiometers.
- Gas flow control via mass flow controller.
- Suitable for measuring networks.
- Modules for all common methods of test gas generation available.
2. Calibration Systems with Integrated Calculator for Setting the Test Gas Zone Concentrations
Calibration System CMK5
- Multiple components can be calibrated sequentially.
- Inexpensive system for measuring stations and laboratory.
- Setting the concentration via keyboard, the necessary flow ratio is calculated internally.
- Several concentrations can be preset for multipoint calibration and retrieved remotely or via keyboard.
3. Fully Automatic Calibration Systems with Int. Computer or Control via PC
Gas Assembly System MicroCal 5000
Compact system for high-precision gas generation for calibration or as operating / useful gas.
- System with integrated computer for control of functions.
- Gas composition with up to four components in a base gas can be specified via gas flow or desired output concentration.
- True multipoint calibration possible in a program flow.
- Automatic, unattended flow of the program.
- 2 Analog inputs for measurement data acquisition – can be used for quality control of the gas mixture during useful gas generation.
- Especially for laboratory use, service and quality assurance of analysers and sensors – also suitable for gas assembly in production and operation.

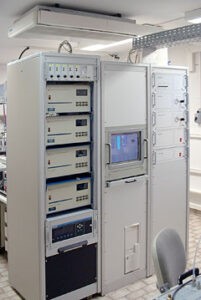

Calibration Laboratory for Quality Assurance and Interlaboratory Tests

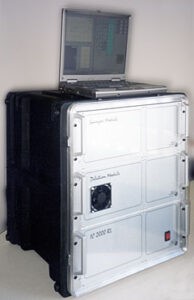

- Complete, stationary laboratory system with up to 32 measuring stations and a test gas range of up to 25 m³ /h, control and data acquisition via PC.
- For test gas generation for interlaboratory tests with several analysers and for quality assurance in research, production and measuring networks.
- Programmatic test gas setting and humidification.
- Acquisition of the measured values from the participating analysers.
- Software for outputting the test sequence logs.
Calibration System CGM
- Functionally similar system to reference laboratory, but in a compact design (19” housing, test gas flow max. 25 l/min.).
- The system is controlled via an external pc or laptop.
4. Systems for Test Gases According to Primary Standard
Calibration Of Ozone Measuring Gas According to the UV Photometric Method
- Primary standard for the calibration of ozone calibration gas according to Lampert / beer (no ozone gas production!).
- Basic method according to VDI 2468 sheet 6 for 0.01 to 1 ppm ozone.
